Version: next

Developer Guide

Wasm Shell (wash) is the comprehensive command-line tool for developing, building, and publishing WebAssembly components.

In this guide, you'll learn how to:

Create a new WebAssembly component project in Rust, Go (TinyGo), or JavaScript (TypeScript)
Start a development loop for your component project
Compile your project to a WebAssembly component binary
Publish your component to an OCI registry

Prerequisites

This guide requires Wasm Shell (wash) and the language toolchain for your language of choice.

To get started:

Install Wasm Shell (wash).
Run wash doctor to check your system for development dependencies.

Create a new component project

Rust
TinyGo
TypeScript
Other

Let's create a component that accepts an HTTP request and responds with "Hello from Rust!"

Use wash new to create a new component project from a template:

shell

wash new

Select Rust
Select http-hello-world
Type y or press return

Let's create a component that accepts an HTTP request and responds with "Hello from Go!"

Use wash new to create a new component project from a template:

shell

wash new

Select TinyGo
Select http-hello-world
Type y or press return

Let's create a component that accepts an HTTP request and responds with "Hello from TypeScript!"

Use wash new to create a new component project from a template:

shell

wash new hello --git https://github.com/wasmCloud/typescript.git --subfolder examples/components/http-hello-world

This command...

Creates a new project named hello...
Based on a template found in the wasmCloud/typescript Git repository...
In the subfolder examples/components/http-hello-world

Navigate to the new http-hello-world directory and take a look at the generated project.

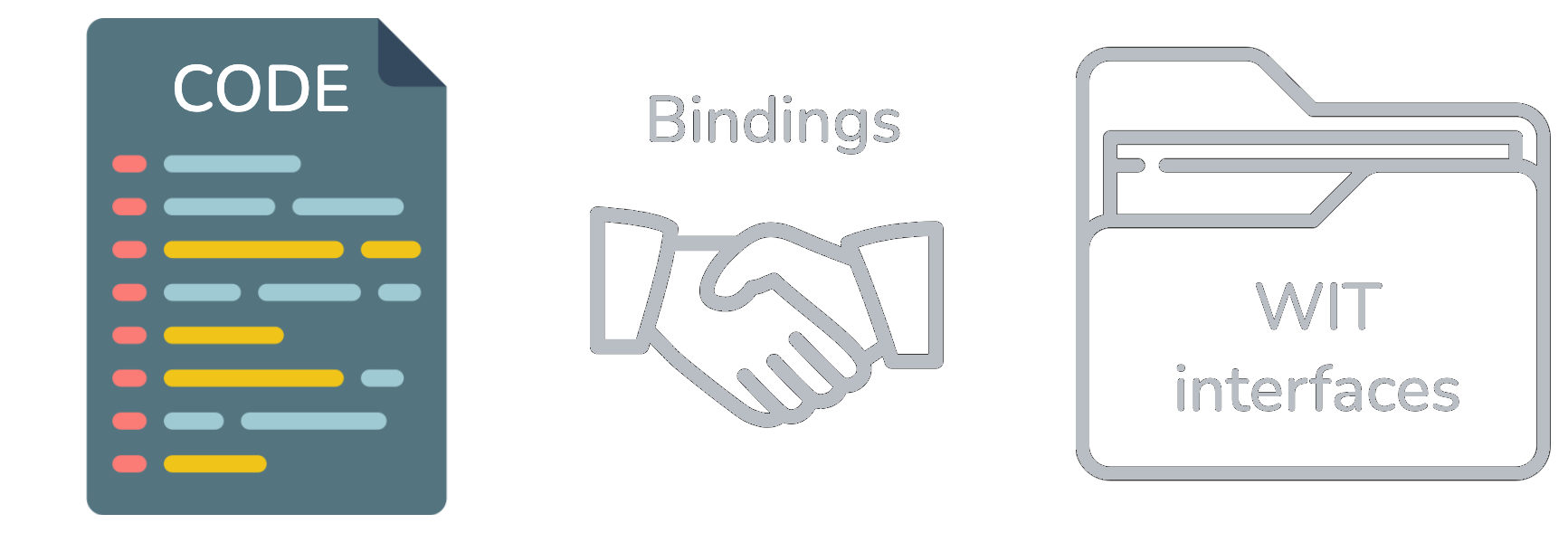

Anatomy of a component project

Component projects are made up of three primary parts:

Application code in your language of choice
Interfaces: language-agnostic APIs that enable components to interact
Bindings that translate your interfaces to the language of your application code

Anatomy of a component

Interfaces

Interfaces are APIs written in WebAssembly Interface Type (WIT). The WIT files (.wit) that make up an interface are typically stored in a /wit folder at the root of a project.

Interfaces define contracts between entities that ultimately express a piece of functionality in terms of imports and exports:

Imports express a dependency: "I need another entity to fulfill this functionality."
Exports express a function exposed to other entities: "I can take care of this functionality."

For example, a component exporting on an HTTP Incoming Handler interface is exposing a function with an assertion that it can handle incoming HTTP requests.

By contrast, a component importing a Key-Value Storage interface is expressing that it requires another entity to expose key-value functionality on the same interface.

The WebAssembly System Interface (WASI) is a group of standards-track interface specifications under development by the WASI Subgroup in the W3C WebAssembly Community Group. WASI interfaces provide standard, namespaced APIs for common functionality, such as wasi:http.

We'll be using wasi:http throughout the rest of this tutorial.

Note: In the definitions above, "entities" often means other WebAssembly components, but not always—any piece of software could theoretically interact over a WIT interface, and common imports like wasi:io or wasi:logging are often fulfilled by WebAssembly runtime environments.

Bindings

Interfaces defined in WIT are language-agnostic, so they must be translated to a given language via bindings.

Bindings are generated a bit differently across different languages, but ultimately wash and the underlying language toolchain will handle binding generation automatically when you run wash dev or wash build.

info

If you use an IDE that comes with code completion and hover-tooltips, you'll be able to see documentation and get strongly-typed guidance as you develop code to interact with WASI interfaces and language-specific bindings. For more Wasm developer tooling, see Useful WebAssembly Tools.

Explore the code

A component's imports and exports are defined in a WIT world. You can find this project's WIT world at ./wit/world.wit:

wit

package wasmcloud:hello;

world hello {
   export wasi:http/incoming-handler@0.2.2;
}

This component exports on one interface: wasi:http/incoming-handler. This means it can only interact with other entities by handling incoming HTTP requests, according to contracts defined in v0.2.2 of the wasi:http interface.

It also means that the component must export on this interface in order to compile successfully.

Now let's take a look at the application code.

Rust
TinyGo
TypeScript
Other

The file src/lib.rs imports the wasmcloud_component crate and consists of a Component struct, an HTTP export, and an impl block that implements http::Server for the Component struct. We'll walk through these sections in detail.

rust

use wasmcloud_component::http;

The wasmcloud_component crate is a library that abstracts and simplifies the usage of standard interfaces like wasi:http, providing utilities familiar to Rust developers based on standard ecosystem types rather than the robust (but often verbose) fully generated wasi:http bindings.

info

You do not need to use a wasmCloud-specific SDK to build components, and this example will work directly with any WebAssembly runtime that supports the Wasm component model.

These two imports are bringing in the Guest trait to implement our function to be called whenever an incoming HTTP request is received, and the types that we'll use to interact with the HTTP request and response. These are the only two imports that we need to interact with the HTTP server capability.

rust

struct Component;

http::export!(Component);

impl http::Server for Component {
    fn handle(
        _request: http::IncomingRequest,
    ) -> http::Result<http::Response<impl http::OutgoingBody>> {
        Ok(http::Response::new("Hello from Rust!\n"))
    }
}

Within the handle method, the component receives the HTTP request, creates a response, and writes that response back to the requesting HTTP client (such as a curl command or a web browser).

Finally, we use the macro export! to specify that the Component struct will handle calls over the wasi:http/incoming-handler interface that this component exports.

rust

export!(HttpServer);

The file main.go includes imports, init and handleRequest functions, and an empty main function.

We'll walk through these pieces in depth.

//go:generate go tool wit-bindgen-go generate --world hello --out gen ./wit

package main

import (
	"fmt"
	"net/http"

	"go.wasmcloud.dev/component/net/wasihttp"
)

func init() {
	// Register the handleRequest function as the handler for all incoming requests.
	wasihttp.HandleFunc(handleRequest)
}

func handleRequest(w http.ResponseWriter, r *http.Request) {
	fmt.Fprintf(w, "Hello from Go!\n")
}

// Since we don't run this program like a CLI, the `main` function is empty. Instead,
// we call the `handleRequest` function when an HTTP request is received.
func main() {}

The Go directive at the very top ensures that when we build our project with tinygo build, the wit-bindgen-go tool will be run to generate the bindings for our component from the hello WIT world found in the ./wit directory. Bindings will be generated in the gen directory.
In the import section, we import Go's standard fmt and net/http libraries. We also import the wasihttp package, which provides an implementation of http.Handler backed by wasi:http—enabling us to write idiomatic Go using a language-agnostic WASI interface.
In the init section, we set the handleRequest function to handle incoming HTTP requests.
In the handleRequest function, we respond to an HTTP request by printing Hello from Go!
The main function is empty, since the component doesn't run like a CLI, but instead runs the handleRequest function when triggered by an HTTP request.

Add a configuration file

To start a developer loop or build a component binary from a Go project, wash requires the project's WIT world to be specified in a configuration file called config.json at /.wash. (When you try to build without a config file, wash will prompt you, but we'll go ahead and get it out of the way.)

Create the config file:

shell

mkdir .wash && touch ./.wash/config.json

Add the contents below to config.json, specifying your WIT world as hello:

json

{
  "build": {
    "tinygo": {
      "target": "wasip2",
      "build_flags": [],
      "disable_go_generate": false,
      "scheduler": "asyncify",
      "gc": "conservative",
      "opt": "z",
      "panic": "print",
      "tags": [],
      "no_debug": true,
      "wit_world": "hello"
    },
    "artifact_path": "build/output.wasm"
  }
}

The file http-hello-world.ts will include imports and a handle function exported under incomingHandler. Let's walk through these pieces in depth.

typescript

import {
  IncomingRequest,
  ResponseOutparam,
  OutgoingBody,
  OutgoingResponse,
  Fields,
} from 'wasi:http/types@0.2.0';

The import section of this file imports our generated types (from jco) for the WASI HTTP interface.

typescript

// Implementation of wasi-http incoming-handler
//
// NOTE: To understand the types involved, take a look at wit/deps/http/types.wit
function handle(req: IncomingRequest, resp: ResponseOutparam) {
  // Start building an outgoing response
  const outgoingResponse = new OutgoingResponse(new Fields());

  // Access the outgoing response body
  let outgoingBody = outgoingResponse.body();
  {
    // Create a stream for the response body
    let outputStream = outgoingBody.write();
    // Write hello world to the response stream
    outputStream.blockingWriteAndFlush(
      new Uint8Array(new TextEncoder().encode('Hello from Typescript!\n')),
    );
    // @ts-ignore: This is required in order to dispose the stream before we return
    outputStream[Symbol.dispose]();
  }

  // Set the status code for the response
  outgoingResponse.setStatusCode(200);
  // Finish the response body
  OutgoingBody.finish(outgoingBody, undefined);
  // Set the created response
  ResponseOutparam.set(resp, { tag: 'ok', val: outgoingResponse });
}

The core logic is contained within the handle function, where the component receives the HTTP request, creates an OutgoingResponse and writes that response back out to the requesting HTTP client (such as a curl command or a web browser).

typescript

export const incomingHandler = {
  handle,
};

Lastly, this export statement includes the handle function under the incomingHandler interface, which matches the wasi:http/incoming-handler interface declared in the application's WIT file.

Something's missing

Note what's not included in this code:

The code is not tightly coupled to any particular HTTP server. It returns an abstraction of an HTTP response.
You don't see the port number or server configuration options anywhere in the code.

This style of interface driven development enables you to write application logic in the language of your choice without having to worry about the non-functional requirements of your application.

Start a development loop

Now we'll start a development loop that runs the component, watches for modifications to the code, and refreshes when we make changes.

shell

wash dev

Now we can send a request to localhost:8000 with curl (in a new tab), or by visiting the address in our browser.

shell

curl localhost:8000

You should see:

text

Hello from <your language>

You can stop the development loop with CTRL+C.

Next steps

In the next section, we'll compile a component to a .wasm binary and publish the artifact to an OCI registry.
