Operator Overview

There are three primary deployments that comprise wasmCloud in a Kubernetes cluster:

  1. wasmCloud Operator — watches workload CRDs, schedules Wasm workloads onto hosts, and manages EndpointSlices for user-defined Services
  2. Host Group — a pool of pods running cluster hosts (washlets) that execute Wasm components
  3. NATS — message broker providing the control-plane transport between the operator and hosts
Runtime Gateway deprecated in 2.0.3

Earlier releases included a separate Runtime Gateway deployment that proxied HTTP traffic to workloads. The gateway is deprecated as of 2.0.3 and is scheduled for removal. HTTP routing is now handled natively by Kubernetes Services: the operator manages an EndpointSlice for each Service referenced by a workload, so requests arriving through standard Kubernetes Service DNS reach the right host pods without any wasmCloud-specific ingress. The gateway pod is still installed by the chart for backwards compatibility; set gateway.enabled: false to skip it.

Architecture​

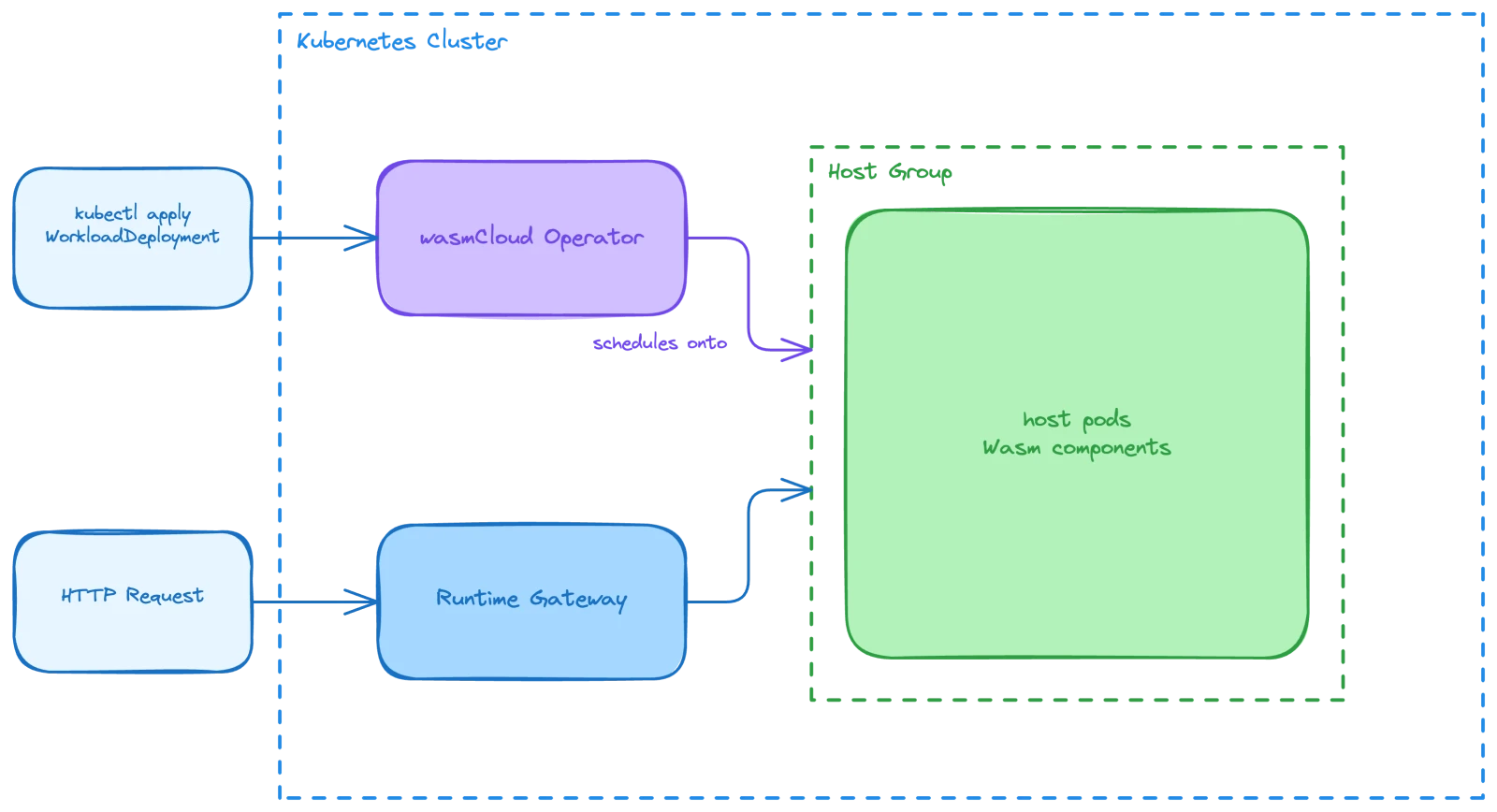

Workload diagram

wasmCloud operator​

The wasmCloud operator (runtime-operator) is the control-plane entity that watches for wasmCloud CRDs and reconciles the desired state. Its responsibilities include:

  • Watching CRDs: Monitors WorkloadDeployment, WorkloadReplicaSet, Workload, Host, and Artifact resources across all (or configured) namespaces.
  • Scheduling workloads: Reads the WorkloadDeployment spec and selects a Host that matches the hostSelector criteria, then creates the appropriate child resources to run the Wasm component.
  • EndpointSlice management: For workloads that reference a Kubernetes Service via spec.kubernetes.service.name, the operator creates and maintains an EndpointSlice pointing to the pod IPs of the hosts running the workload. It also registers Service DNS aliases with the host's HTTP router so requests arriving via cluster DNS reach the correct component.
  • Host communication: Sends workload start/stop requests and polls host health over NATS, using the runtime.host.<hostID>.<operation> subject pattern (e.g. runtime.host.<hostID>.workload.start).
  • Status reporting: Updates the status subresource of each CRD to reflect whether scheduling succeeded or failed, and surfaces Kubernetes events for observability.
  • Leader election: When enabled and running with multiple replicas, uses a coordination.k8s.io/v1 Lease in the operator's own namespace to elect a single active instance and avoid split-brain reconciliation.
  • Metrics endpoint: Exposes a /metrics endpoint (Prometheus format) protected by Kubernetes token review and subject access review, suitable for scraping by monitoring tools.

The operator runs with the wasmcloud-runtime-operator ServiceAccount. See Roles and Role Bindings for the full set of permissions required.

Host group​

The host group is a Deployment of pods, each running cluster hosts (washlets). A host group provides the sandboxed execution environment for WebAssembly components. Key characteristics:

  • Multiple hosts per group: Multiple pods can form a single host group, allowing the operator to spread or replicate Wasm workloads across them.
  • Host labels: Each pod is labelled (e.g., hostgroup: default) so that WorkloadDeployment manifests can use hostSelector to target a specific group.
  • Isolation: Each host is an isolated sandbox; components on different hosts do not share memory or state.
  • Extensibility: You can build custom host images that include host plugins to extend the capabilities available to Wasm components.

By default, the Helm chart installs three host pods in the default host group.

NATS​

NATS is the message broker that carries all control-plane traffic between the wasmCloud Operator and wasmCloud hosts. Key roles include:

  • Operator ↔ host RPC: The operator sends workload start, stop, and status requests to individual hosts via NATS subjects (runtime.host.<hostID>.workload.start, runtime.host.<hostID>.workload.stop, etc.).
  • Host self-registration: Each host pod publishes periodic HostHeartbeat messages to runtime.operator.heartbeat.<hostID>. The operator subscribes to these to discover hosts and create or update their Host CRDs.
  • JetStream: Provides built-in object storage used by the platform.

The Helm chart bundles NATS with JetStream enabled (nats.enabled: true by default). To use an existing NATS cluster, set nats.enabled: false and configure the operator and hosts to point at your endpoint.

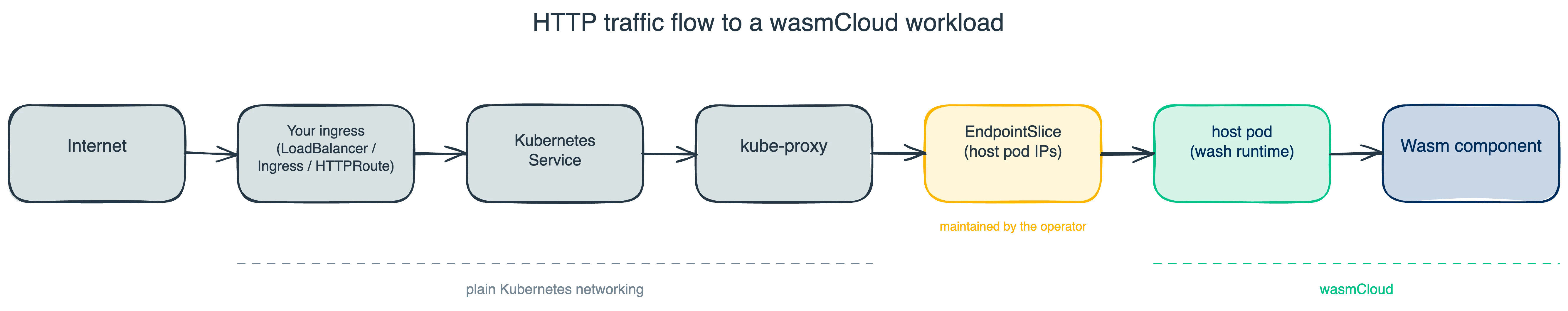

Request flow​

When a WorkloadDeployment that references a Kubernetes Service is applied:

  1. The wasmCloud operator detects the new CRD, selects a matching host from the host group, and sends a workload start request to the host via NATS (runtime.host.<hostID>.workload.start).
  2. The operator injects the Service's DNS aliases (e.g. my-svc, my-svc.default, my-svc.default.svc) into the host's HTTP router so incoming requests with a matching Host header route to this component.
  3. The operator creates and maintains an EndpointSlice owned by the referenced Service, populated with the pod IPs of the hosts running the workload.
  4. Incoming HTTP requests resolve the Service's ClusterIP via standard Kubernetes DNS and are forwarded by kube-proxy to the host pod IPs in the EndpointSlice, where the wash runtime executes the Wasm component.

See the Expose a Workload via Kubernetes Service recipe for a step-by-step walk-through.
